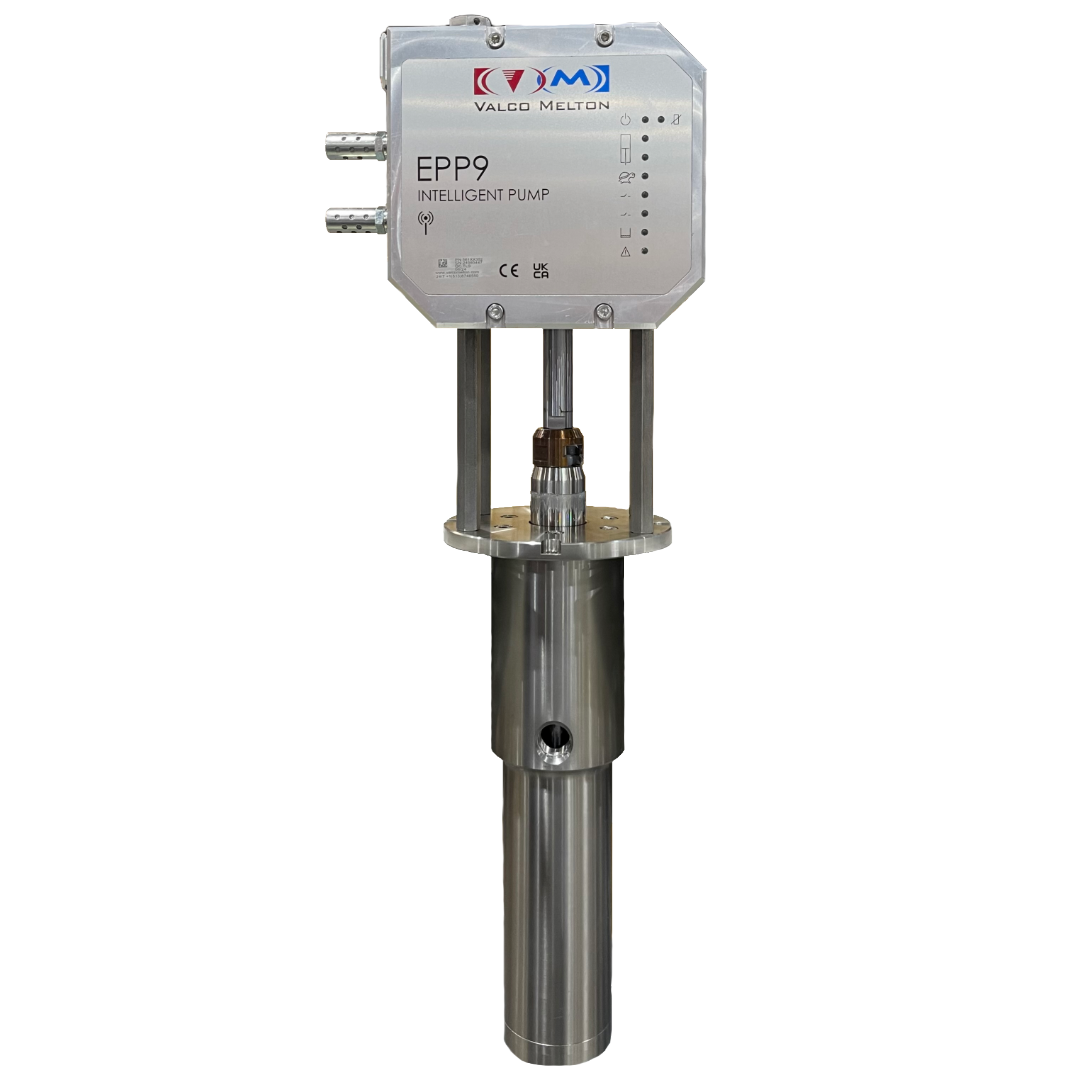

EPP-9 PISTON PUMP

EPP-9 PISTON PUMP

561XX352

$5,849.45 USD
$5,849.45 USD
Sale Sold out
Shipping calculated at checkout.

The EPP-9 is an air-powered piston pump. The EPP-9 features an electronically controlled reversing device for fast, reliable pulse-free operation. Suited for use with adhesives and similar fluids, the EPP-9 Piston Pump offers an output ratio of 9:1, with a minimum air pressure of 20 psi and a maximum air pressure of 100 psi.

For more information, please contact us (513) 874-6550 or contact@valcomelton.com.

High Volume Output

The EPP-9 features two times the adhesive volume per cycle. This updated technology requires fewer cycles, which results in a longer lasting pump.

Higher Output Pressure

The EPP-9 is ideal for increased speeds and high viscosity applications.

Unique Intelligent Slow Mode

The unique intelligent slow mode feature eliminates high cycle rates that occur during priming, or when adhesive supply is blocked or depleted (dry cycling). If the pump cycle rate becomes too high, the incoming air is automatically restricted which slows the pump to a manageable cycle rate. The slow mode prevents excessive wear or damage to shaft seals.

Seal Cartridge-Floating Shaft Design

The EPP-9 was designed with a floating shaft, which allows for fast and easy repairs in the field without the need for any special tools.

Modular Quick Clamp Air Connect

The new dovetail cutout on the EPP-9 allows for the use of a Quick Clamp to attach the air regulator, making installation and removal of the air regulator easy.

View full details

EPP-9

EPP-9 PISTON PUMP MANUAL

SPECIFICATIONS

  • Pumping capacity max 0.5gal/min (2L/min) Measured with SAE 30W oil at 225 cps
  • Air consumption max 4.3 SCFM (2.0L/Sec)
  • Pump stroke limited at automatically limited to 30 cycles/min to avoid harming seals during priming or low fluid conditions
  • Input fitting size – ¾” NPT
  • Output fitting size – ½” NPT
  • Air input fitting size – ¼” NPT
  • Minimum air pressure – 20psi (1.4bar)
  • Wetted materials – 304 Stainless Steel, EPDM
  • Power requirements – 24V DC, 1A
  • Input power connector – 5-pin M12 plug, A-Code
  • Height 24” (605mm)
  • Width 6.9” (176mm)
  • Depth  6.3” (160mm)
  • Weight 30 lb. (13.6Kg)
